Description
500830: Anima V3 Bluetooth 30A Micro Sensored Brushless ESC

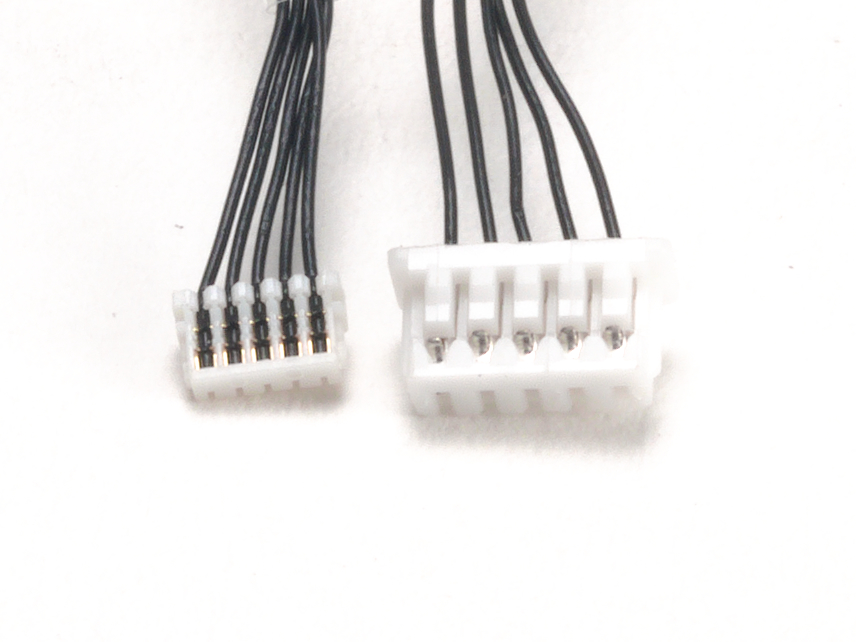

500822: Sensor Wire
500823: Wire Connector for Anima ESC to Receiver
170035: V3 3500kv Sensored Brushless motor
170055: V3 5500kv Sensored Brushless motor
170075: V3 7500kv Sensored Brushless motor
170025: V3 2500kv Sensored Brushless motor
V4 Sensored Brushless Motors

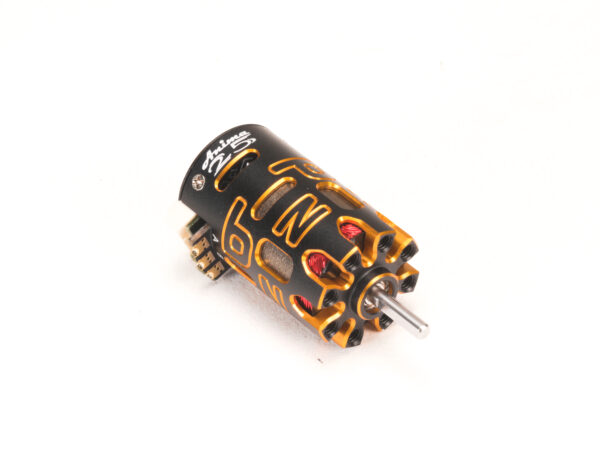

174425: V4 2500kv Sensored Brushless motor
174435: V4 3500kv Sensored Brushless motor
174445: V4 4500kv Sensored Brushless motor
500840: Anima V4 30A 1/28 Sensored Brushless ESC

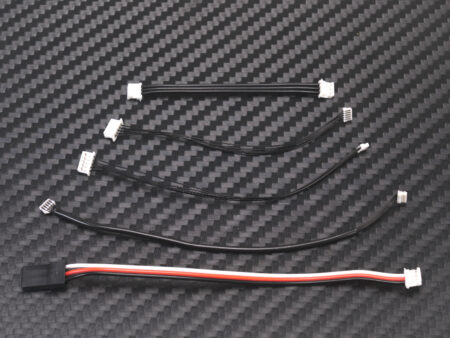

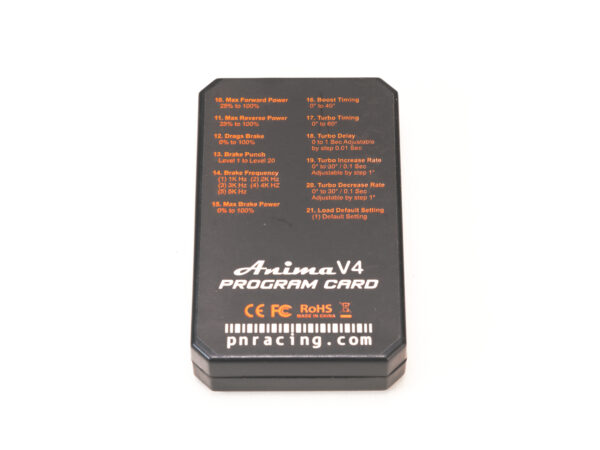

1>Technical /Specifications – Battery Input Voltage: 2S lipo 6V-8.4V – BEC: 6V/7.4V 3A – 1/27 motor Limit: 10000kv or below – Continoues Curent: 30A – Peak Current: 80A – Size: 19.5×13.7×11.0mm (not include the plug) – Weight: 7.1g (without any wire installed) Mini-Z 1525 1626 Motor limit with 2cell x 3.7V LiPo. The motor timing is at 0 deg. 10000kv or below 2>Features Package Included: 1 x Anima V4 30A ESC 1 x 80mm Motor Sensor Wire for #500822 PN Motor Anima35 Anima 55 Anima75 1 x 100mm Motor Sensor Wire for #50085 PN Motor Anima35 Anima 55 Anima75 1 x 125mm Motor Sensor Wire for Atomic; Hobbywing; MWX; Motor 1 x Wire Connector ESC to Receiver #500826 1 x Wire adapter (Futaba Plug) 1 x Programmer 1 x JST Female plug for 2S Lipo Battery
